The Multi-Tool of Utility Vehicles
Ready for anything from road to dirt, indoors or out, the street-legal E-LSV Tropos Motors™ ABLE™ ST is a dependable compact utility workhorse. With an on-road payload capacity of up to 1,100 pounds (1500 pounds off-road), and a turning radius of 150 inches (12.5 feet), it is tough enough for the big jobs yet small enough to get into tight spaces.
This 10kW ultra-low maintenance truck has an estimated 144 MPGe, up to 4.3 M/KwH. It has a variable range of 40–120 miles*, and a top speed of 25 mph, based on customization.
More than Tough Enough
Manufactured in the United States, the Tropos Motors™ ABLE™ ST is built for the long haul and the heavy load.

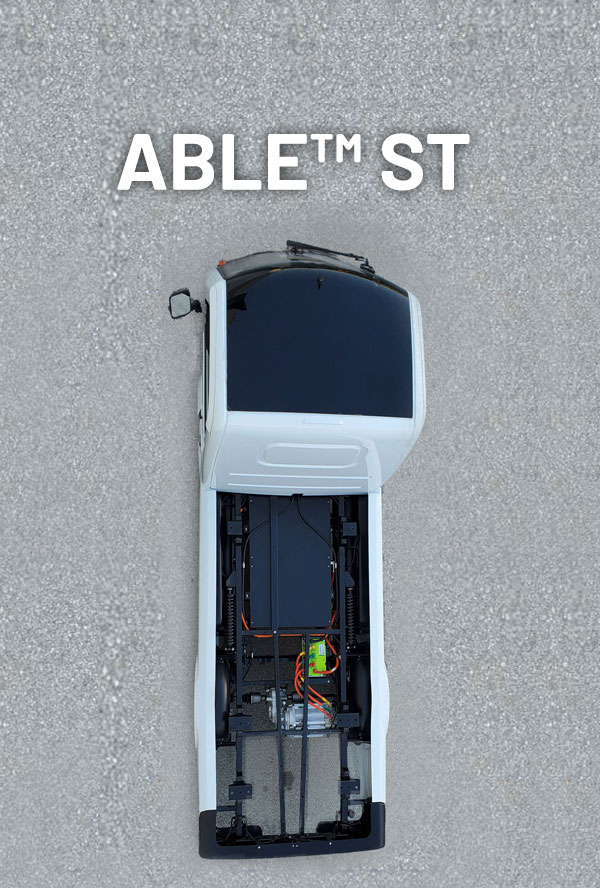

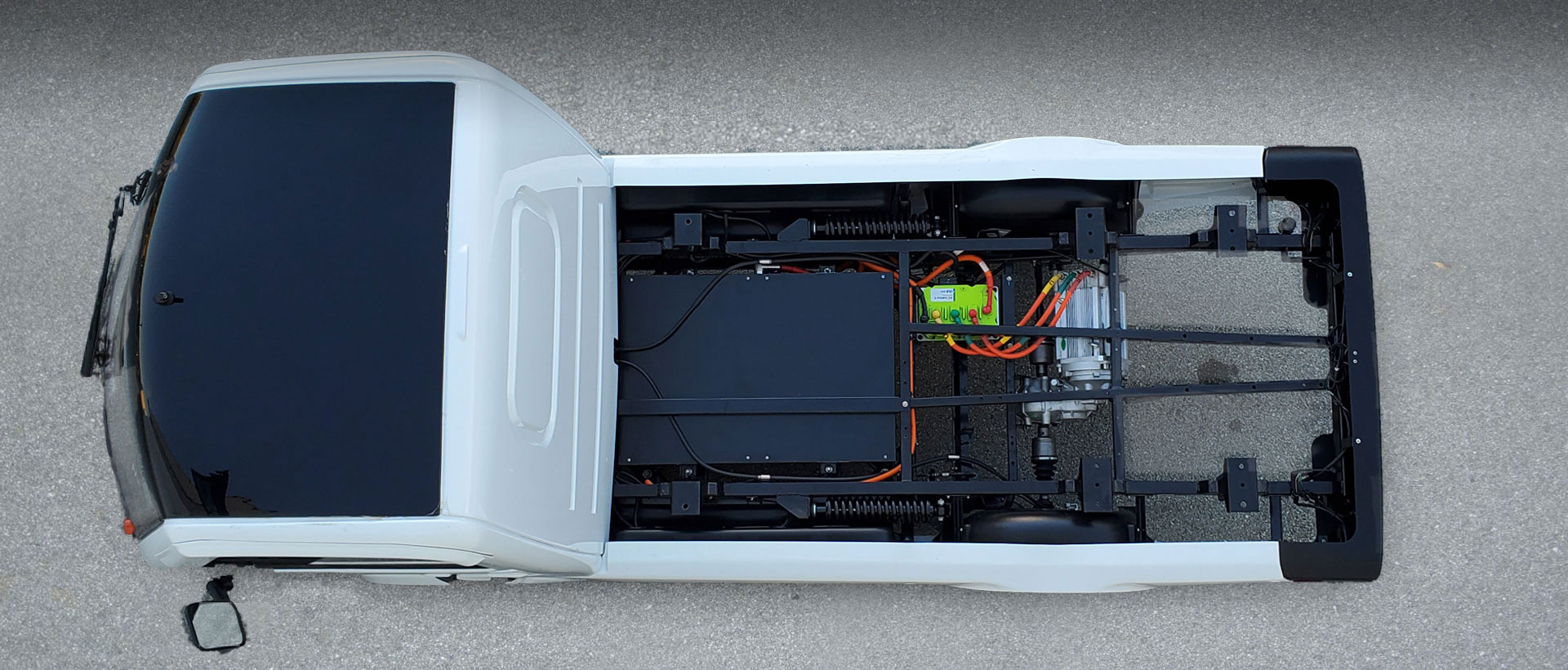

EV Engineered Chassis
Our chassis are specially designed for electric utility vehicles— unlike many other EV manufacturers that use heavy and poorly balanced chassis that were designed for the internal combustion engines. Our computer designed and tested chassis feature a lightweight, modular and well-balanced structure for high performance, efficiency, durability and versatility.
Towing Powerhouse
The Tropos Motors™ ABLE™ ST is a towing powerhouse with a towing capacity of up to 2000 pounds. The ABLE’s electric drive system, with nearly 1020 NM (752 ft lbs) of rear wheel torque, enables it to pull effortlessly off-the-line. With an ultra-linear power delivery the Tropos Motors™ ABLE™ ST is perfect for any load, small, or large.
Portable Power
The Tropos Motors™ ABLE™ ST performs double duty as a mobile power source for all your electric power tool work place needs. An accessory AC Power Inverter makes it the perfect power source for any 110v 15 Amp power tool. With the Tropos Motors™ ABLE™ ST you always have a ready supply of power to get the job done.
Endlessly Configurable
Choose from over 10 different bed options including:
open truck bed with fold down sides
hydraulic dump bed
utility bed with ladder/lumber rack
cargo box with rear and side doors.
*Range varies by climate, use conditions, battery age, driving, and charging habits. Range testing is conducted with the vehicle in “economy mode”. Actual range may vary or change.
Specifications
PUBLIC ROAD PAYLOAD CAPACITY *
GVWR is 3,000 lbs for the LSV classification**
Public Road Payload Capacity
1100 lbs
Closed Campus Payload Cap.
2000 lbs
Public Road Towing Capacity
2000 lbs
Closed Campus Towing Cap.
3000 lbs
* Payload and towing capacities are subject to change based on the bed package and accessories installed on the vehicle.
** In order to meet Federal Motor Vehicle Safety Standards ( FMVSS ) and to be registered and operated on public streets, roads, or highways, all Tropos ABLE™ vehicles have a maximum GVWR weight rating of 3,000 lbs.
PERFORMANCE
Max Speed
Electronically limited to
25 mph as specified by
local laws for LSV vehicles.
(Capability of up to 45+ mph on closed campuses and private facilities only and when not registered for use on public roadways.)
Range *
Up to 50 mi at 25 mph Standard
Turning Radius
157 in
Gradeability
30% Unloaded / 20% Loaded
Acceleration
0-20 mph under 6 s
0-30 km/h under 6 s
Braking Distance
25-0 mph in 25 feet
*Range varies by climate, use conditions, battery age, driving, and charging habits. Range testing is conducted with the vehicle in “economy mode”. Actual range may vary or change.
DRIVE SYSTEM
Battery Type
Gel Lead Acid (Standard)
Charging
110v/220v
Operating Voltage
72 VDC
Motor Nominal Power
10 kW (13 hp)
Motor Peak Power
24 kW (32 hp)
Rear Wheel Peak Torque
1020 Nm (752 ft. lbs)
CHASSIS
Drive
2WD Rear
Front Suspension
Transverse Leaf Spring
Rear Suspension
Torsion-Beam Suspension
Brake
Four Wheel Disc
Tires
175/65 R14
Bodywork
Reinforced ABS
Steering
Electrical Power Assist Steering
Front Extra-Duty Bumper
Extra-Duty Rear Bumpers
Door Delete
Emergency Caution Light Package
Exterior Work Lights
Power Export Module
High Clearance Kit (2+ Inch Added Ground Clearance)
Extended Range Battery Packs
Right Hand Drive (Factory installed only)
12-Volt Power Outlet
Dome Light
Overhead Storage Console
AM FM Bluetooth USB Stereo
Hands Free Bluetooth Mobile Phone Connectivity
Passenger Vanity Mirror
Adjustable High-Back Bucket Seats
Cabin Heater
Ignition Key
Sun Visors
Windshield Defroster
Cup Holders
Back-Up Camera
Windshield Wiper and Washer
Sliding Rear Window
14" Alloy Wheels
P175/65R14 All Season Tires
Folding Rear View Mirrors
Front Tow Hook
Halogen Head Lamps
LED Brake, Reverse & Rear Turn
Central Door Lock System
with Enhanced Rear View Mirror
Hill Hold
The ABLE ST is easily customizable. Inquire for more information on how to have a chassis customize to suit your specific application.
Compare the ABLE™ ST
To see how the Tropos Motors™ ABLE™ ST stacks up to the competition, click the comparisons below:
Vehicle Manufacturer |
Tropos Motors ABLE™ ST |
Polaris GEM eL XD |
BASIC SPECS |
||
Dimensions |
145.5 in x 55.1 in x 75 in / 3700mm x 1400 mm x 1905 mm |
146 X 55.5 X 73 in (371 X 141 X 185cm) |
Rear Bed Capacity |
1100lbs / 500 kg |
1100 lbs (499kg) |
Cargo Volume |
123 ft³ / 3.5 m³ |
|
GVWR |
3000 lbs |
3000 lbs (1361kg) |
Cubic Feet of cab |
|
70 ft3 (2m3) |
PERFORMANCE |
|
|
Max Speed* |
25–35 mph based on local laws / 40+ mph off-road |
25mph |
Range |
Up to 50 mi at 25 mph standard |
15- 30 miles |
Turning Radius |
157 in / 4000 mm |
233 in (5920mm) |
Gradeability |
30% unloaded and 20% loaded |
|
Acceleration |
0-20 mph under 6 s / 0-30 km/h under 6 s |
|
Braking Distance |
25-0 mph in 25 feet / 40-0 km/h in 7.5 m |
|
*Max Speed is set by state regulation for Neighbor Electric Vehicles, it is 25 mph in most states. |
||
DRIVE SYSTEM |
|
|
Battery Type |
Gel Lead Acid (Standard) |
Flooded Electrolyte |
Operating Voltage |
72 VDC |
48V |
Motor Nominal Power |
10 kW |
|
Motor Peak Power 1 |
8 kW (25 hp) |
6.5kW (8.7HP) |
Torque |
1020 NW (752 ft. lbs) |
|
CHASSIS |
|
|
Drive |
2WD rear |
2wd Front |
Front Suspension |
Transverse leaf spring |
Macpherson Strut - 5.6 inches (14cm) |
Rear Suspension |
Torsion-beam suspension |
Independent Trailing Arm - n6 inches (15cm) |
Font Brake |
Hydraulic Disc |
Hydraulic Disc |
Rear Brake |
Hydraulic Disc |
Hydraulic Drum |
Tire |
175/65 R14 |
13 inch 155/80 R13 |
Bodywork |
Reinforced ABS w/doors |
Open Door |
WARRANTY |
|
|
|
2 Year / 16,000 mile (25,741km) Limited Warranty |
2 Year / 8000 mile (12,900km) Limited Warranty |
Vehicle Manufacturer |
Tropos Motors ABLE™ ST |
John Deere XUV865M Cab |
BASIC SPECS |
||
Dimensions |
145.5 in x 55.1 in x 75 in / 3700mm x 1400 mm x 1905 mm |
127inX69.4inX78.25in |
Rear Bed Capacity |
1100lbs / 500 kg |
1000lb(454kg) |
Cargo Volume |
123 ft³ / 3.5 m³ |
|
GVWR |
3000 lbs |
2069lbs(940kg) |
Cubic Feet of cab |
|
|
PERFORMANCE |
|
|
Max Speed* |
25–35 mph based on local laws / 40+ mph off-road |
Up to 32mph |
Range |
Up to 50 mi at 25 mph standard |
|
Turning Radius |
157 in / 4000 mm |
|
Gradeability |
30% unloaded and 20% loaded |
|
Acceleration |
0-20 mph under 6 s / 0-30 km/h under 6 s |
|
Braking Distance |
25-0 mph in 25 feet / 40-0 km/h in 7.5 m |
|
*Max Speed is set by state regulation for Neighbor Electric Vehicles, it is 25 mph in most states. |
||
DRIVE SYSTEM |
|
|
Battery Type |
Gel Lead Acid (Standard) |
4-Cycle Diesel |
Operating Voltage |
72 VDC |
|
Motor Nominal Power |
10 kW |
|
Motor Peak Power 1 |
8 kW (25 hp) |
17 kW (22.8 HP( |
Torque |
1020 NW (752 ft. lbs) |
|
CHASSIS |
|
|
Drive |
2WD rear |
CVT |
Front Suspension |
Transverse leaf spring |
Fully Independent A-Arm |
Rear Suspension |
Torsion-beam suspension |
Fully Independent A-Arm |
Font Brake |
Hydraulic Disc |
Hydraulic Disc |
Rear Brake |
Hydraulic Disc |
Hydraulic Disc |
Tire |
175/65 R14 |
26X9-12 Ancla MT/26X11-12 Ancla M-T |
Bodywork |
Reinforced ABS w/doors |
Comes with doors |
WARRANTY |
|
|
|
2 Year / 16,000 mile (25,741km) Limited Warranty |
|
Vehicle Manufacturer |
Tropos Motors ABLE™ ST |
MOTO-Electric Bubble Buddy LSV |
BASIC SPECS |
||
Dimensions |
145.5 in x 55.1 in x 75 in / 3700mm x 1400 mm x 1905 mm |
116.4in X 55.2in 72in |
Rear Bed Capacity |
1100lbs / 500 kg |
800 lbs |
Cargo Volume |
123 ft³ / 3.5 m³ |
|
GVWR |
3000 lbs |
2500 lbs |
Cubic Feet of cab |
|
|
PERFORMANCE |
|
|
Max Speed* |
25–35 mph based on local laws / 40+ mph off-road |
Up to 25 mph |
Range |
Up to 50 mi at 25 mph standard |
Up to 50 miles |
Turning Radius |
157 in / 4000 mm |
129.6in |
Gradeability |
30% unloaded and 20% loaded |
20% |
Acceleration |
0-20 mph under 6 s / 0-30 km/h under 6 s |
|
Braking Distance |
25-0 mph in 25 feet / 40-0 km/h in 7.5 m |
|
*Max Speed is set by state regulation for Neighbor Electric Vehicles, it is 25 mph in most states. |
||
DRIVE SYSTEM |
|
|
Battery Type |
Gel Lead Acid (Standard) |
QTY 8 Trojan 105 |
Operating Voltage |
72 VDC |
|
Motor Nominal Power |
10 kW |
|
Motor Peak Power 1 |
8 kW (25 hp) |
4kw (5.5hp) |
Torque |
1020 NW (752 ft. lbs) |
|
CHASSIS |
|
|
Drive |
2WD rear |
2wd rear |
Front Suspension |
Transverse leaf spring |
Independent/rear steel plate suspension |
Rear Suspension |
Torsion-beam suspension |
Independent/rear steel plate suspension |
Font Brake |
Hydraulic Disc |
Hydraulic |
Rear Brake |
Hydraulic Disc |
Hydraulic |
Tire |
175/65 R14 |
|
Bodywork |
Reinforced ABS w/doors |
Steel Franmework + Fiberglass w/doors |
WARRANTY |
|
|
|
2 Year / 16,000 mile (25,741km) Limited Warranty |
3 Year Limited Warranty |
Vehicle Manufacturer |
Tropos Motors ABLE™ ST |
Club Car Carryall 710 LSV |
BASIC SPECS |
||
Dimensions |
145.5 in x 55.1 in x 75 in / 3700mm x 1400 mm x 1905 mm |
132in X 62.6 in X 74.3in |
Rear Bed Capacity |
1100lbs / 500 kg |
1050 lbs |
Cargo Volume |
123 ft³ / 3.5 m³ |
|
GVWR |
3000 lbs |
1765 lbs |
Cubic Feet of cab |
|
|
PERFORMANCE |
|
|
Max Speed* |
25–35 mph based on local laws / 40+ mph off-road |
Up to 25mph |
Range |
Up to 50 mi at 25 mph standard |
|
Turning Radius |
157 in / 4000 mm |
|
Gradeability |
30% unloaded and 20% loaded |
|
Acceleration |
0-20 mph under 6 s / 0-30 km/h under 6 s |
|
Braking Distance |
25-0 mph in 25 feet / 40-0 km/h in 7.5 m |
|
*Max Speed is set by state regulation for Neighbor Electric Vehicles, it is 25 mph in most states. |
||
DRIVE SYSTEM |
|
|
Battery Type |
Gel Lead Acid (Standard) |
|
Operating Voltage |
72 VDC |
48V |
Motor Nominal Power |
10 kW |
|
Motor Peak Power 1 |
8 kW (25 hp) |
3.3 kW (4.4hp) |
Torque |
1020 NW (752 ft. lbs) |
|
CHASSIS |
|
|
Drive |
2WD rear |
|
Front Suspension |
Transverse leaf spring |
Independent Leaf Spring with hydraulic shocks |
Rear Suspension |
Torsion-beam suspension |
Independent Leaf Spring with hydraulic shocks |
Font Brake |
Hydraulic Disc |
Hydraulic drum |
Rear Brake |
Hydraulic Disc |
Hydraulic drum |
Tire |
175/65 R14 |
|
Bodywork |
Reinforced ABS w/doors |
Open Door |
WARRANTY |
|
|
|
2 Year / 16,000 mile (25,741km) Limited Warranty |
3 Year Limited Warranty |
Vehicle Manufacturer |
Tropos Motors ABLE™ ST |
Columbia Summit Utilitruck |
BASIC SPECS |
||
Dimensions |
145.5 in x 55.1 in x 75 in / 3700mm x 1400 mm x 1905 mm |
137inX60inX70in |
Rear Bed Capacity |
1100lbs / 500 kg |
1500lbs |
Cargo Volume |
123 ft³ / 3.5 m³ |
|
GVWR |
3000 lbs |
3000lbs |
Cubic Feet of cab |
|
|
PERFORMANCE |
|
|
Max Speed* |
25–35 mph based on local laws / 40+ mph off-road |
Up to 25mph |
Range |
Up to 50 mi at 25 mph standard |
Up to 40 miles |
Turning Radius |
157 in / 4000 mm |
356in |
Gradeability |
30% unloaded and 20% loaded |
|
Acceleration |
0-20 mph under 6 s / 0-30 km/h under 6 s |
|
Braking Distance |
25-0 mph in 25 feet / 40-0 km/h in 7.5 m |
|
*Max Speed is set by state regulation for Neighbor Electric Vehicles, it is 25 mph in most states. |
||
DRIVE SYSTEM |
|
|
Battery Type |
Gel Lead Acid (Standard) |
8 Six Volt deep Cycle |
Operating Voltage |
72 VDC |
48V |
Motor Nominal Power |
10 kW |
|
Motor Peak Power 1 |
8 kW (25 hp) |
19HP |
Torque |
1020 NW (752 ft. lbs) |
|
CHASSIS |
|
|
Drive |
2WD rear |
|
Front Suspension |
Transverse leaf spring |
Front Double A Arm |
Rear Suspension |
Torsion-beam suspension |
Independent leaf springs |
Font Brake |
Hydraulic Disc |
Hydraulic Disc |
Rear Brake |
Hydraulic Disc |
Hydraulic Disc |
Tire |
175/65 R14 |
205/65-10in |
Bodywork |
Reinforced ABS w/doors |
Open Door |
WARRANTY |
|
|
|
2 Year / 16,000 mile (25,741km) Limited Warranty |
3 Year Limited Warranty |
Prices do not include accessories, taxes, fees nor destination charges.
Tropos Motors reserves the right to make changes at any time, without prior notice, in prices, colors, materials, equipment, specifications and models, and to discontinue models or equipment. Tropos does no make any warranty or guarantee of any kind, express or implied, regarding the information,including without limitation any warranty regarding its currency, accuracy or completeness or any warranty of merchantability or fitness for particular purpose. All specifications and equipment are subject to change without notice and should not be relied upon. Photographs may not reflect all features accurately, including vehicle version, options and accessories. Availability and delivery times for particular models or equipment may vary. For additional information please contact your Tropos dealer.
