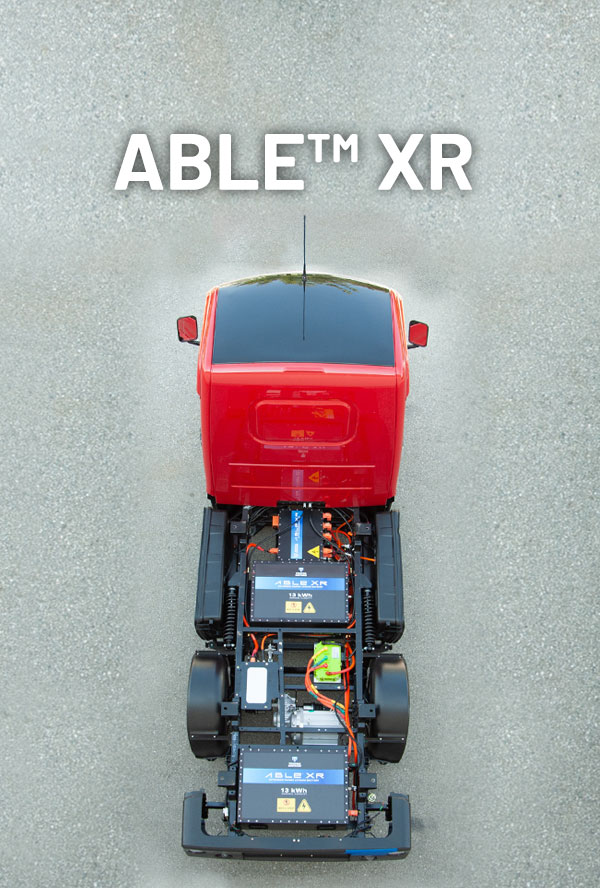

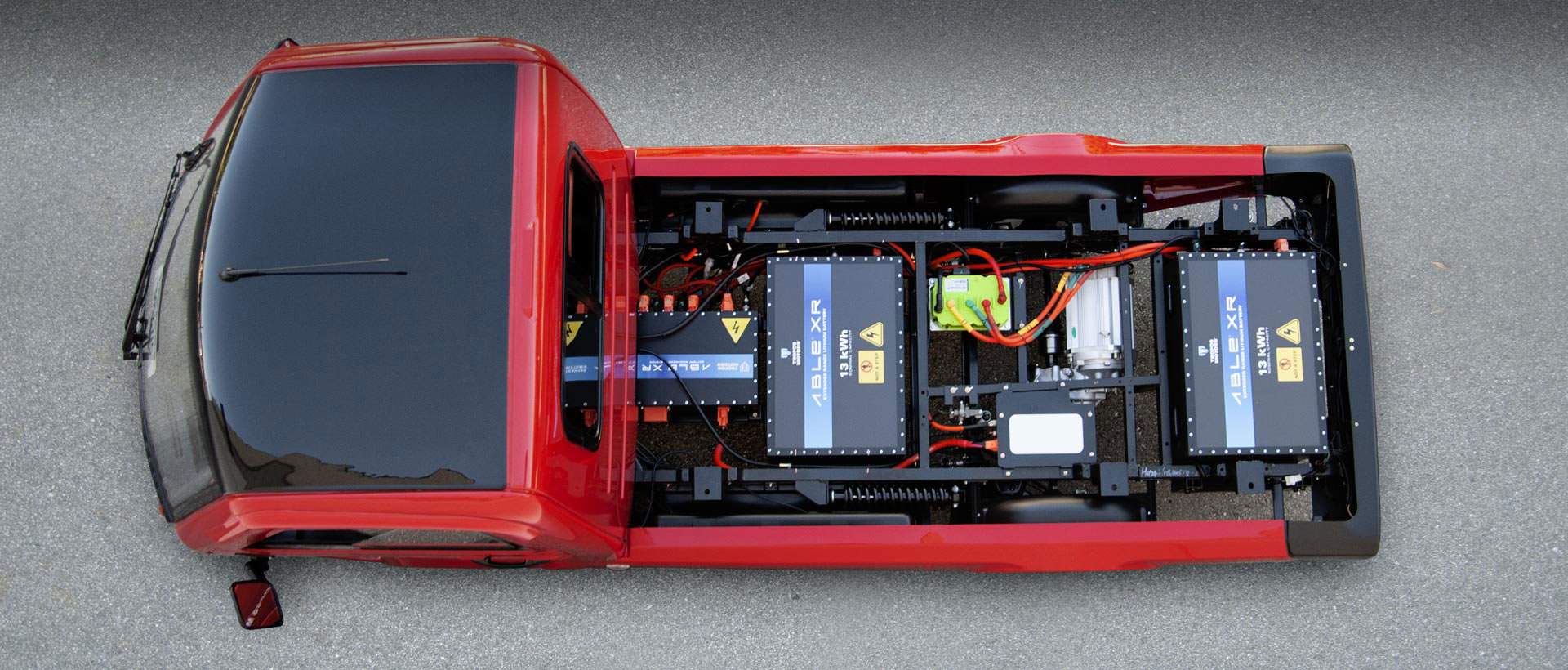

The lithium powered, long-range ABLE™ XR is the first vehicle that truly fills the gap between conventional low-speed vehicles (LSVs) and standard full-sized pickup trucks. The ABLE™ XR comes with safety and comfort features never before offered in the LSV classification. Built tough with automotive grade components, the ABLE™ XR is no glorified golf cart, and with a 26kWh battery, and an 160 mile range* (at 25 mph), the ABLE™ XR has the strength to go the distance.
With driver safety a top priority, a load sensing brake proportioning system, hill-hold, reinforced doors, full-length steel chassis, and a driver side airbag are included as standard features of the ABLE™ XR.
The lithium battery provides enough power for HVAC, and with an enclosed cab, drivers can stay comfortable all year. Other standard comforts include Bluetooth phone connectivity, backup camera and it is telematics ready.
*Range varies by climate, use conditions, battery age, driving, and charging habits. Range testing is conducted with the vehicle in “economy mode”. Actual range may vary or change.
Platform
The ABLE™ ST and ABLE™ XR are incredibly versatile electric vehicle platforms. Just as the real value of a smartphone is in how applications are utilized on the platform, the robust towing and payload capacities of the ABLE™ ST and ABLE™ XR, as well as the automotive grade components, make these platforms capable of supporting an endless number of applications that add value.
Towing Powerhouse
The ABLE™ XR is perfect for any load, small or large, sporting a substantial payload capacity of 1100lbs on public roads, and 2000 lbs on private facilities and closed campuses. It is a towing powerhouse with a towing capacity of up to 2000 pounds on public roads, and up to 3000 pounds** on closed campuses. The ABLE XR’s electric drive system which enables it to pull effortlessly off-the-line, with an ultra-linear power delivery.
Narrow and Nimble
At 55 inches wide and with a 13 ft Turing radius, the ABLE XR can be safely navigated on sidewalks and walkways in addition to public roads.
Specifications
PUBLIC ROAD PAYLOAD CAPACITY *
GVWR is 3,000 lbs for the LSV classification**
Public Road Payload Capacity
1100 lbs
Closed Campus Payload Cap.
2000 lbs
Public Road Towing Capacity
2000 lbs
Closed Campus Towing Cap.
2000 lbs
* Payload and towing capacities are subject to change based on the bed package and accessories installed on the vehicle.
** In order to meet Federal Motor Vehicle Safety Standards ( FMVSS ) and to be registered and operated on public streets, roads, or highways, all Tropos ABLE™ vehicles have a maximum GVWR weight rating of 3,000 lbs.
PERFORMANCE
Max Speed
Electronically limited to 25 mph as specified by local laws for LSV vehicles.
(Capability of up to 45+ mph on closed campuses and private facilities only and when not registered for use on public roadways.)
Range *
Up to 160 mi at 25 mph Standard
Turning Radius
157 in
Gradeability
30% Unloaded / 20% Loaded
Acceleration
0-20 mph under 6 s
0-30 km/h under 6 s
Braking Distance
25-0 mph in 25 feet
*Range varies by climate, use conditions, battery age, driving, and charging habits. Range testing is conducted with the vehicle in “economy mode”. Actual range may vary or change.
DRIVE SYSTEM
Battery Type
Lithium Ion
Charging
220v
Operating Voltage
96 VDC
Motor Nominal Power
10 kW (13 hp)
Motor Peak Power
26 kW (32 hp)
CHASSIS
Drive
2WD Rear
Front Suspension
Transverse Leaf Spring
Rear Suspension
Torsion-Beam Suspension
Brake
Four Wheel Disc
Tires
175/65 R14
Dimensions
150 in x 55 in x 75 in
(with pickup package installed)
Bodywork
Reinforced ABS
Steering
Electrical Power Assist Steering
Braking
Load Sensing Brake Proportioning System
Chassis Reinforcements
Front Bumper, Doors
Telematics
Emergency Caution Light Package
Exterior Work Lights
Power Export Module
High Clearance Kit (2+ Inch Added Ground Clearance)
12-Volt Power Outlet
Dome Light
Overhead Storage Console
AM FM Bluetooth USB Stereo
Hands-free Bluetooth Mobile Phone Connectivity
Passenger Vanity Mirror
Adjustable High-Back Bucket Seats
Cabin Heater
Ignition Key
Sun Visors
Windshield Defroster
Cup Holders
Back-Up Camera
Windshield Wiper and Washer
Sliding Rear Window
Driver’s Side Airbag
14" Alloy Wheels
P175/65R14 All Season Tires
Folding Rear View Mirrors
Front Tow Hook
Halogen Head Lamp
LED Brake, Reverse & Rear Turn
Central Door Lock System
Hill Hold
Self-canceling turn signals
The ABLE™ XR is easily customizable. Inquire for more information on how to have a chassis customize to suit your specific application.
