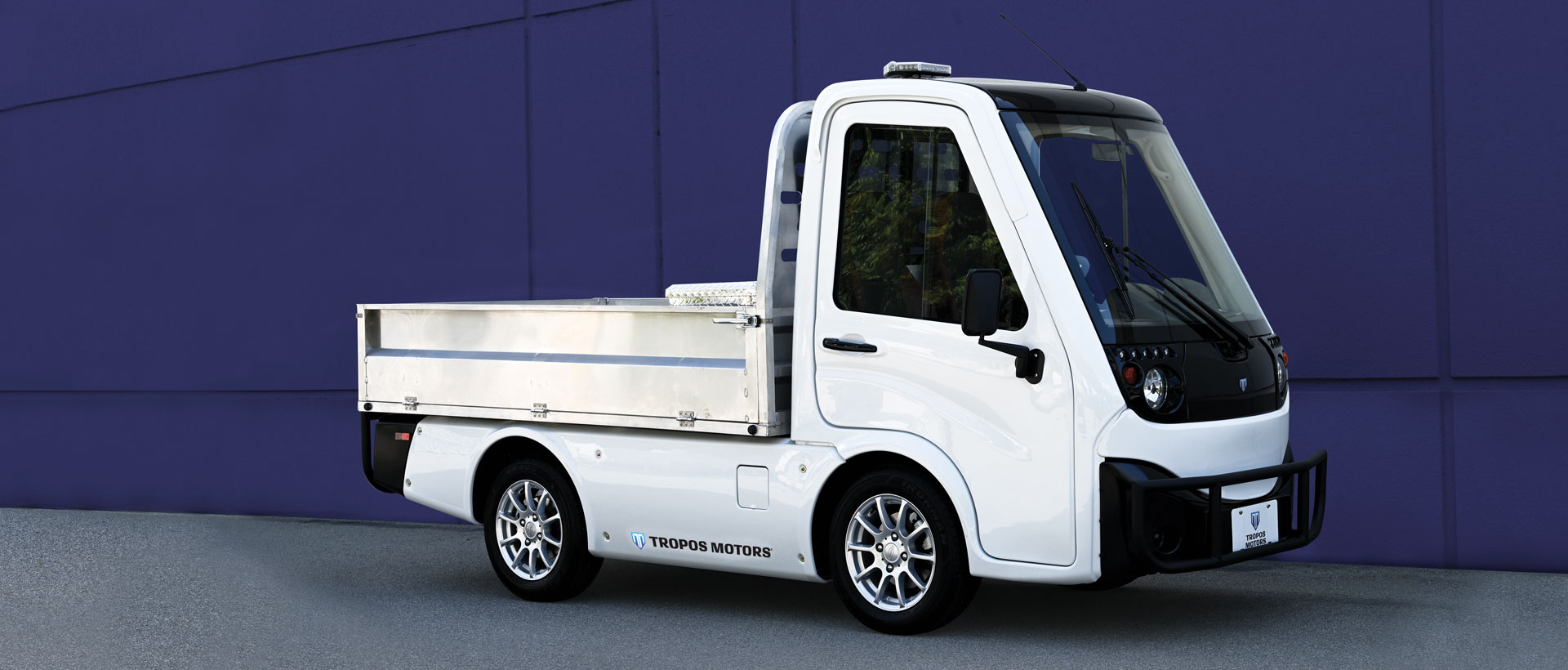

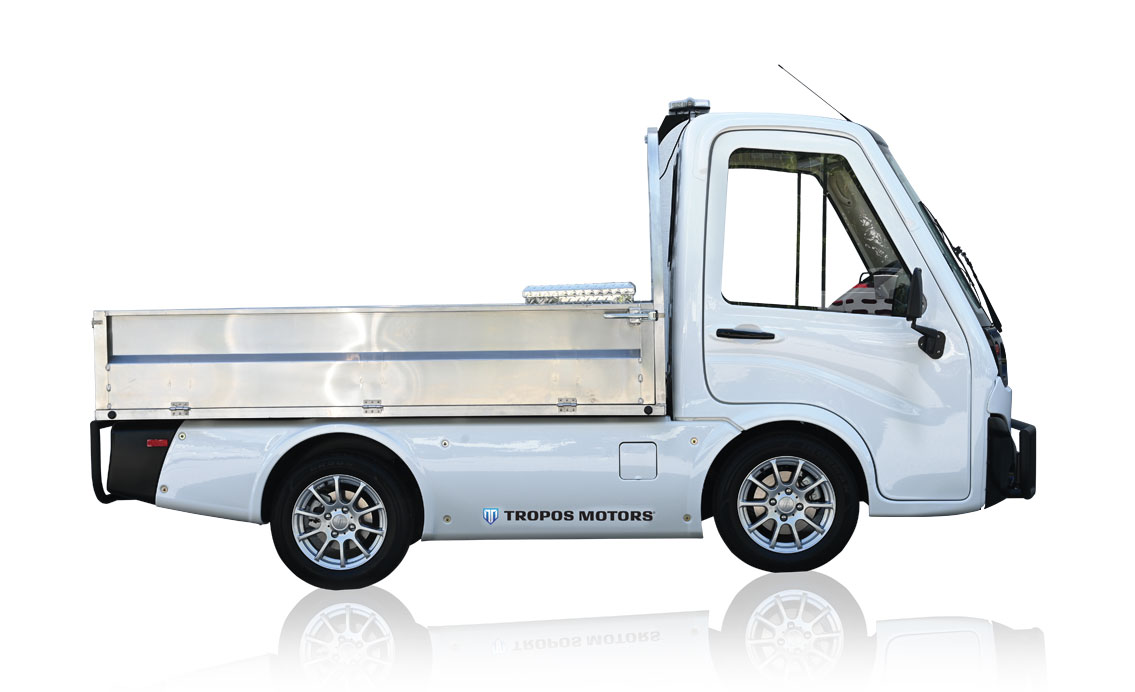

Perfect for Parking Enforcement and Public Works
The lithium powered, long-range ABLE™ XR RHD is the first vehicle that truly fills the gap between conventional low-speed
vehicles (LSVs) and compact pickups and vans. With an extremely tight turning radius and maneuverable, the ABLE™ XR RHD
is perfectly suited for parking enforcement and public works. It comes with safety and comfort features never before offered
in the LSV classification. Built tough with automotive grade components, the ABLE™ XR RHD is no glorified golf cart, and with
both a 13kWh or 26kWh lithium battery configurations available, and up to a 160-mile range*, and 25 mph capability,
the ABLE™ XR RHD has the strength to go the distance.
With driver safety, a top priority, a load sensing ABS brake system, hill-hold feature, reinforced floors and doors, full-length
steel chassis, and a driver side airbag are included as standard features of the ABLE™ XR RHD.
The lithium battery pack provides enough power for HVAC and license plate reading technology, and with an enclosed cab,
drivers can stay comfortable all year round. Other standard comforts include Bluetooth phone connectivity and backup
camera. The XR Chassis is also autonomous and telematics ready.
PLATFORM
The ABLE™ XR is an incredibly versatile electric vehicle platform.
Just as the real value of a smartphone is in how applications are
utilized on the platform, the robust towing and payload capacities
of the ABLE™ ST and ABLE™ XR, as well as the automotive grade
components, make these platforms capable of supporting an
endless number of applications that add value to the user.
TOWING POWERHOUSE
The ABLE™ XR is perfect for any load, small or large, sporting a substantial payload capacity of 1100lbs on public roads, and 2000 lbs on private facilities and closed campuses. It is a towing powerhouse with a towing capacity of up to 2000 pounds on public roads, and up to 3000 pounds** on closed campuses. The ABLE™ XR’s electric drive system which enables it to pull effortlessly off-theline, with an ultra-linear power delivery.
NARROW AND NIMBLE
At 55 inches wide and with a 13 ft Turing radius, the ABLE™ XR can be safely navigated on sidewalks and walkways in addition to public roads.
* at 25 mph. Does not include parasitic load. Power consuming features, accessories, along with
driving conditions, will reduce vehicle range.
** Requires electric or surge trailer brakes.
STANDARD BED PACKAGES INCLUDE:

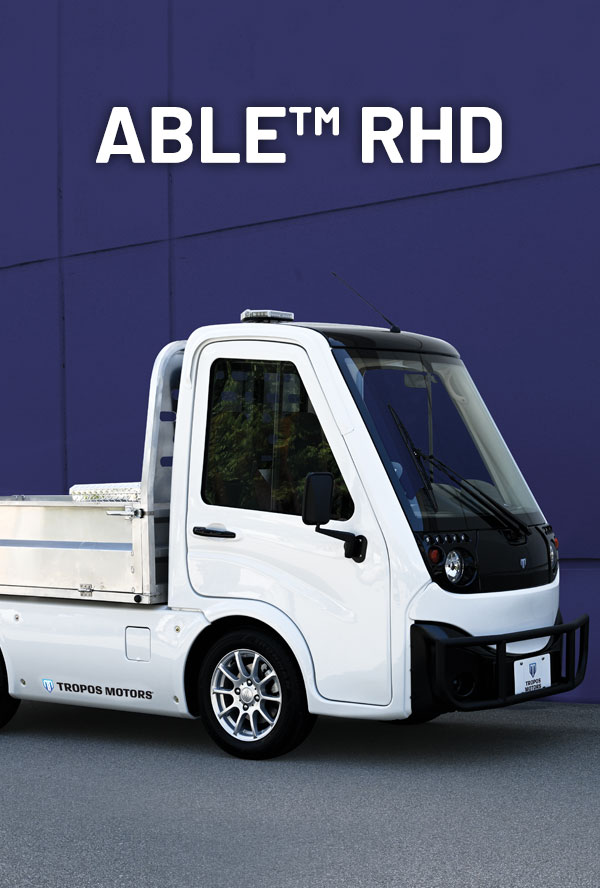

Right-Hand Drive
View more

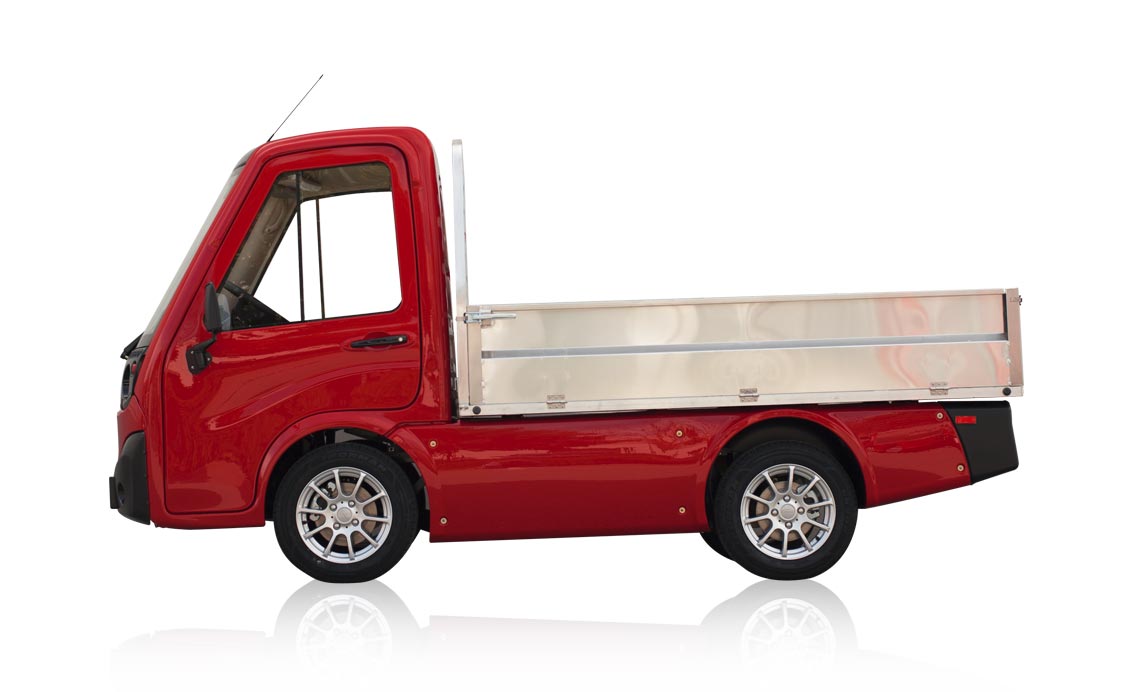

Pickup
View more

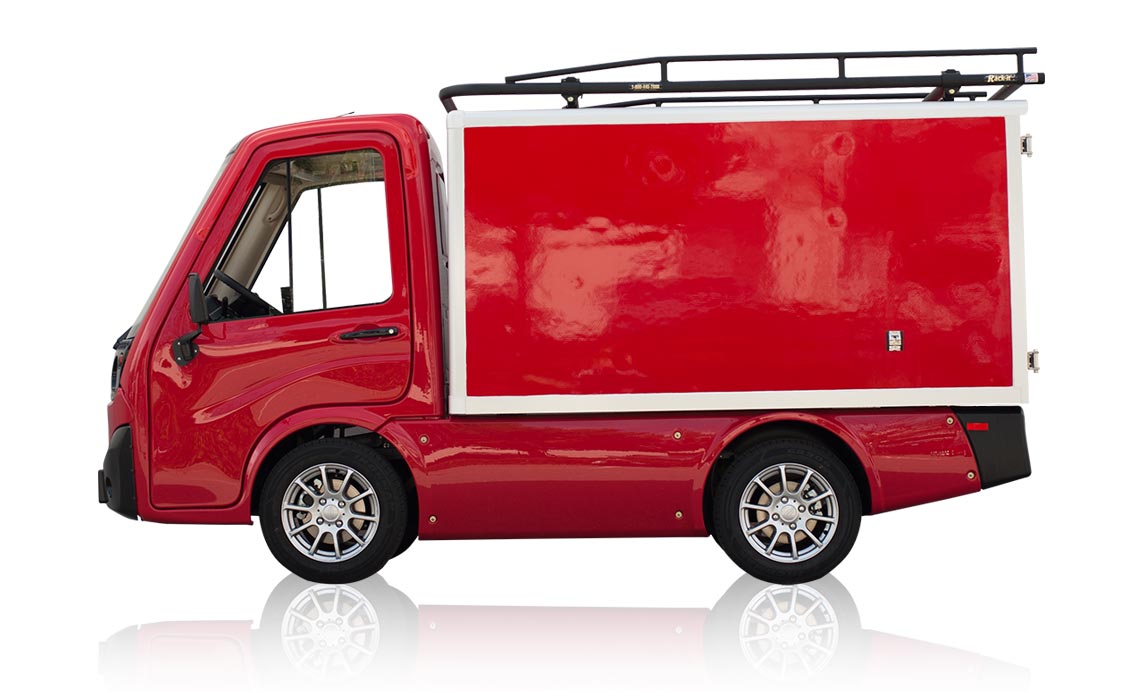

Cargo
View more

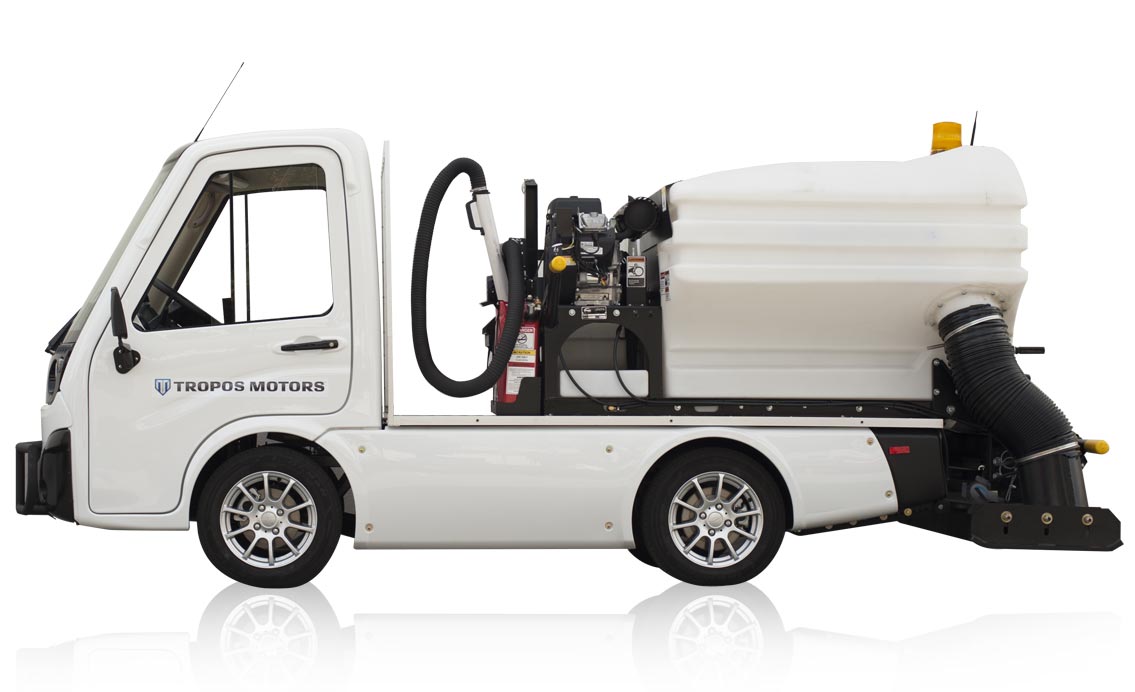

Sweep
View more

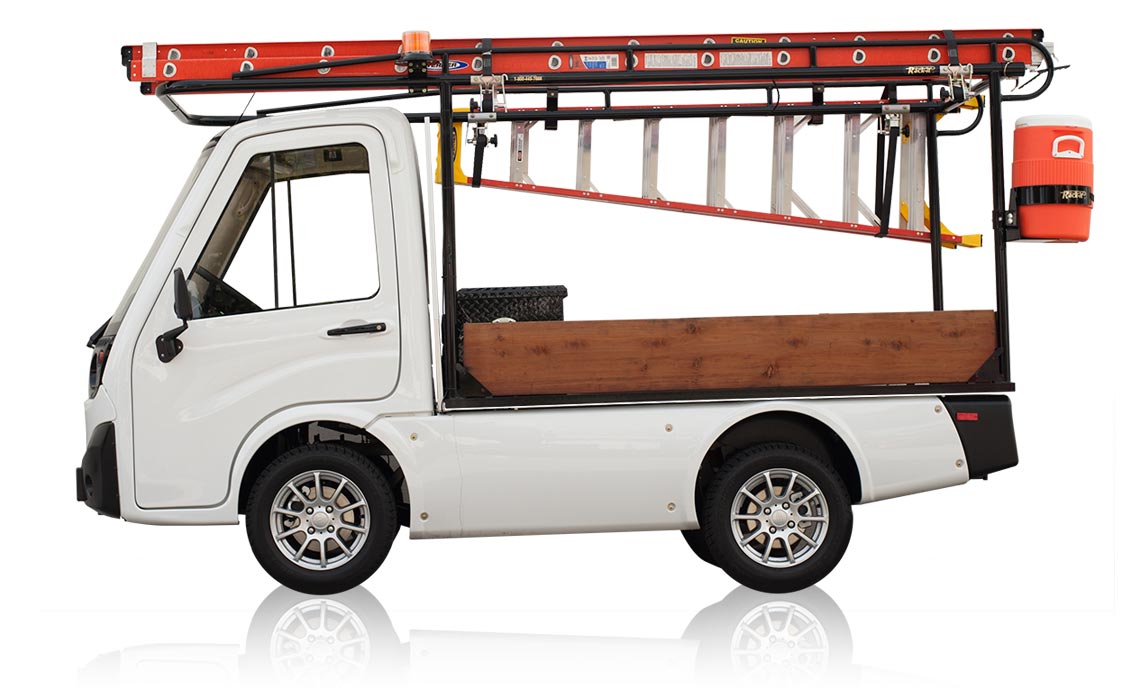

ABLE™ Trades
View more
FRV Fire Response
View more
EMSc (contained platform)
View more
EMSo (open platform)
View more

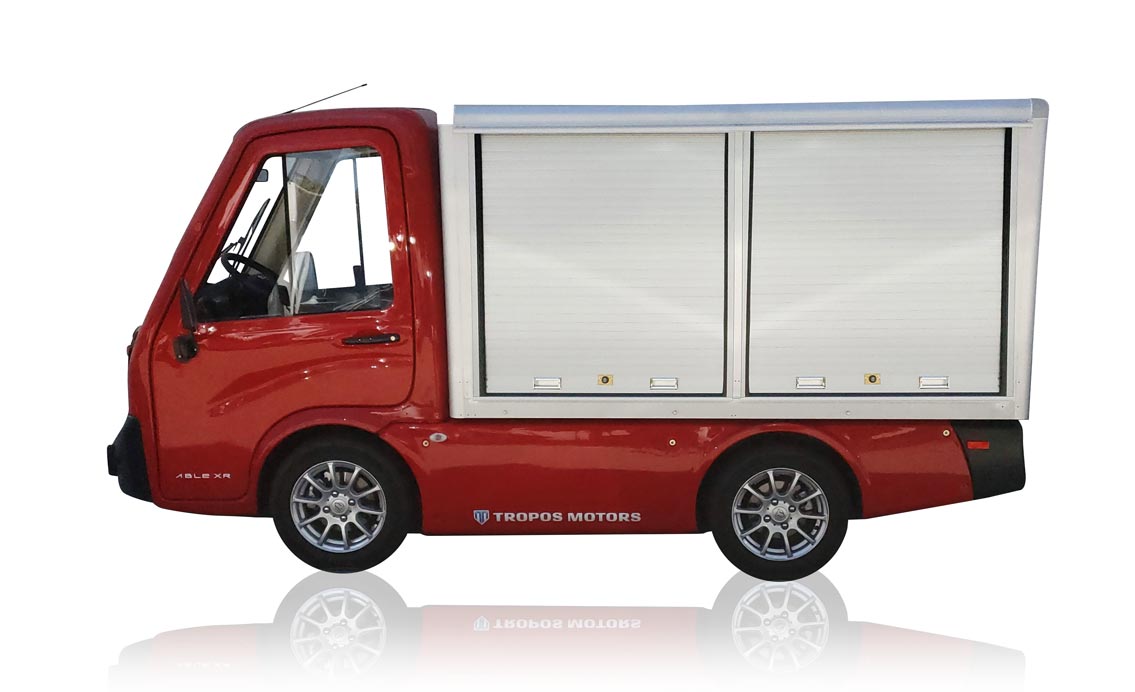

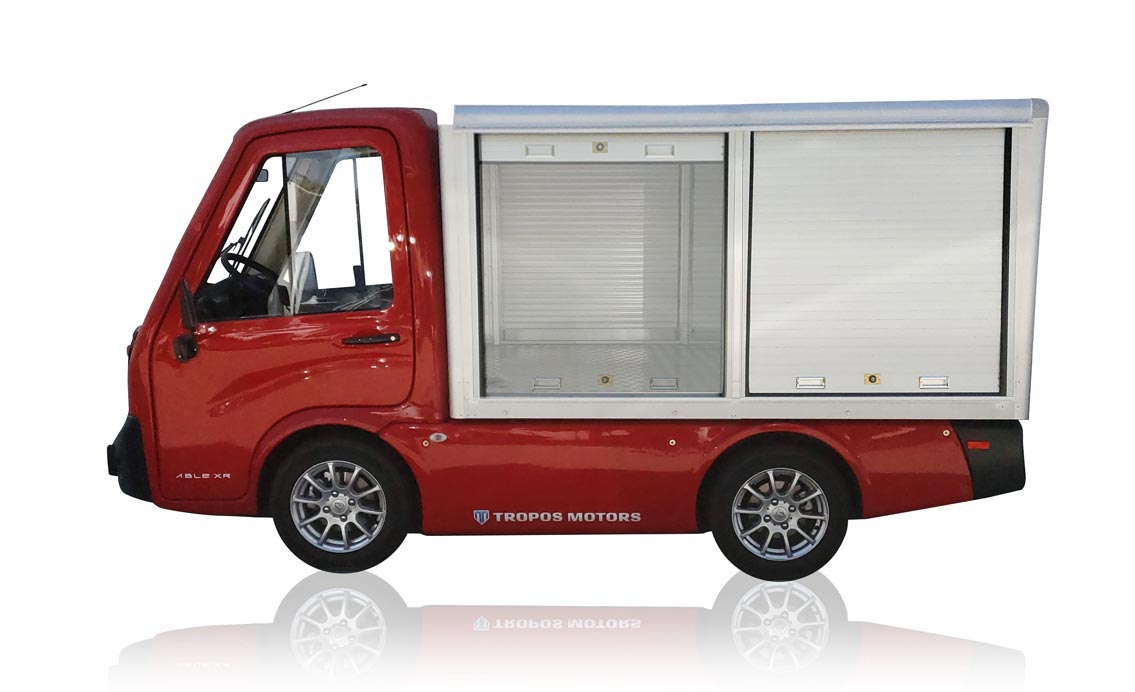

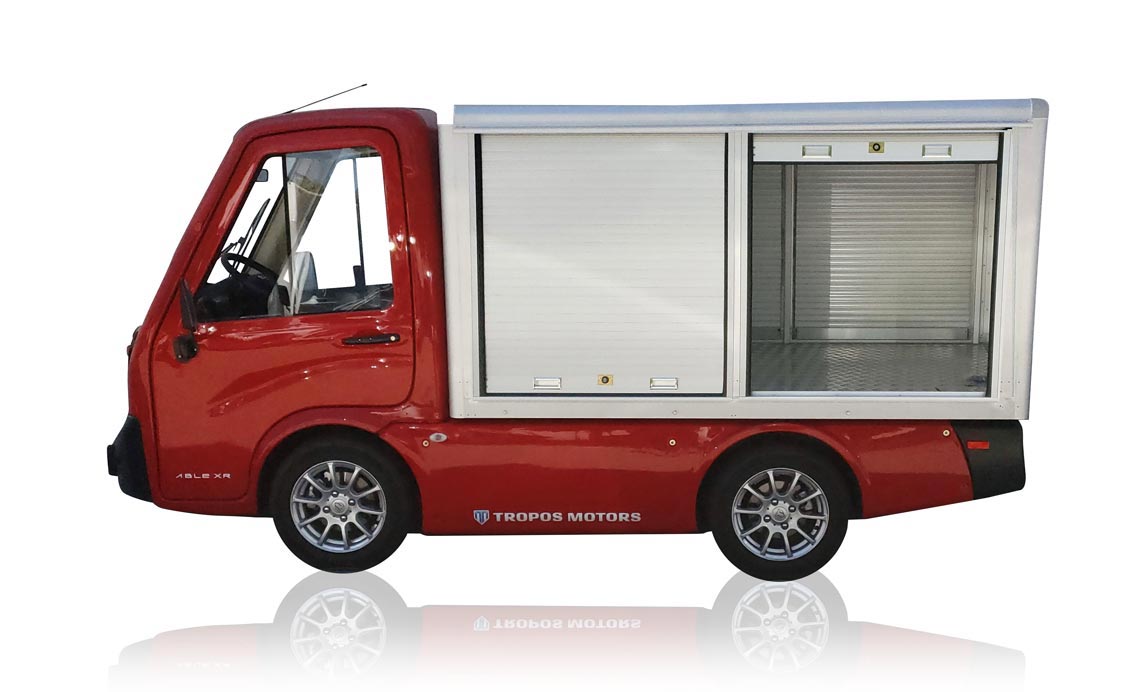

ABLE™Roll-up Door Cargo
View more
Specifications
May be used on public roads and on closed campuses.
PUBLIC ROAD PAYLOAD CAPACITY *
GVWR is 3,000 lbs for the LSV classification**
Public Road Payload Capacity
1100 lbs
Closed Campus Payload Cap.
2000 lbs
Public Road Towing Capacity
2000 lbs
Closed Campus Towing Cap.
3000 lbs
* Payload and towing capacities are subject to change based on the bed package and accessories installed on the vehicle.
** In order to meet Federal Motor Vehicle Safety Standards ( FMVSS ) and to be registered and operated on public streets, roads, or highways, all Tropos ABLE™ vehicles have a maximum GVWR weight rating of 3,000 lbs.
PERFORMANCE
Max Speed
Electronically limited to 25 mph as specified by local laws for LSV vehicles.
(Capability of up to 45+ mph on closed campuses and private facilities only and when not registered for use on public roadways.)
Range *
Up to 160 mi at 25 mph Standard
Turning Radius
157 in
Gradeability
30% Unloaded / 20% Loaded
Acceleration
0-20 mph under 6 s
0-30 km/h under 6 s
Braking Distance
25-0 mph in 25 feet
* Range varies by climate and use conditions.
DRIVE SYSTEM
Battery Type
Lithium Ion
Charging
220v
Operating Voltage
96 VDC
Motor Nominal Power
10 kW (13 hp)
Motor Peak Power
26 kW (32 hp)
CHASSIS
Drive
2WD Rear
Front Suspension
Transverse Leaf Spring
Rear Suspension
Torsion-Beam Suspension
Brake
ABS Four Wheel Disc
Braking
Load Sensing Brake Proportioning System
Tires
175/65 R14
Dimensions
150 in x 55 in x 75 in
(with pickup package installed)
Bodywork
Reinforced ABS
Steering
Electrical Power Assist Steering
Chassis Reinforcments
Front Bumper, Doors
Telematics
Safety Beacon Light Kit
Exterior Work Lights
Power Export Module
High Clearance Kit (2+ Inch Added Ground Clearance)
12-Volt Power Outlet
Door Ajar Actuated Dome Light
Overhead Storage Console
AM FM Bluetooth USB Stereo
Hands Free Bluetooth Mobile Phone Connectivity
Interior Rearview Mirror
Passenger Vanity Mirror
Two-Way Adjustable High-Back Bucket Seats
Cabin Heater
Ignition Key
Sun Visors
Windshield Defroster
Cup Holders
Back-Up Camera
Variable Speed Intermittent Windshield Wipers
Sliding Rear Window
Drivers Side Airbag
14" Alloy Wheels
P175/65R14 All Season Tires
Folding Rear View Mirrors
Front Tow Hook
Halogen Head Lamp
LED Brake, Reverse & Rear Turn
Central Door Lock System
Hill Hold
Self canceling turn signals
The ABLE™ XR Chassis is easily customizable. Inquire for more information on how to have a chassis customize to suit your specific application.
